2 Channels cell counter Fully Auto Hematology Analyzer 3 Parts CBC machine

FOB Reference Price:Get Latest Price
$2,000.00 - $2,461.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jilin, China
Brand Name:
Merydi
Model Number:
CBC-6000
Type:
Biochemical Analysis System
Certificate:
CE ISO
Product name:
Fully Auto Hematology Analyzer 3 Parts
Test speed:
60tests/h
Test channel:
2 channels
Printer:
Built-in thermal printer
Display:
Large LCD
Language version:
Multi Language Choose
Function:
Blood Analysis
Data input:
keyboard
Sample:
10 ul
Instrument classification:
Class I, Class II
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
net weight: 21kg
Port
Any ports

2 Channels cell counter Fully Auto Hematology Analyzer 3 Parts CBC machine

Product Description

  Product Description

- 3-part differentiation of WBC, 20 parameters, single channel counter

- Volume measurement by time ,not wrong warning

- Adanced valve technology,long life

- RS232 interface, PC connecting

- up to 60 samples test per hour

- Electrical resistance for counting and SFT method of hemoglobin

- Low sample consumption : venous 10 ul, capillary 10 ul, pre-diluted 20 ul for twice testing one time

- 10.1” color TFT, Windows interface all testing parameter displayed simultaneously

- Windows operation system graphical buttons mouse and keyboard operation

- Double convolution and intelligent fitting

- Automatic diluting , Mixing , rinsing and clog clearing

- Automatically sample probe cleanning (inside and outside)

- Large storage capacity: up to 10,000 samples +3 histograms

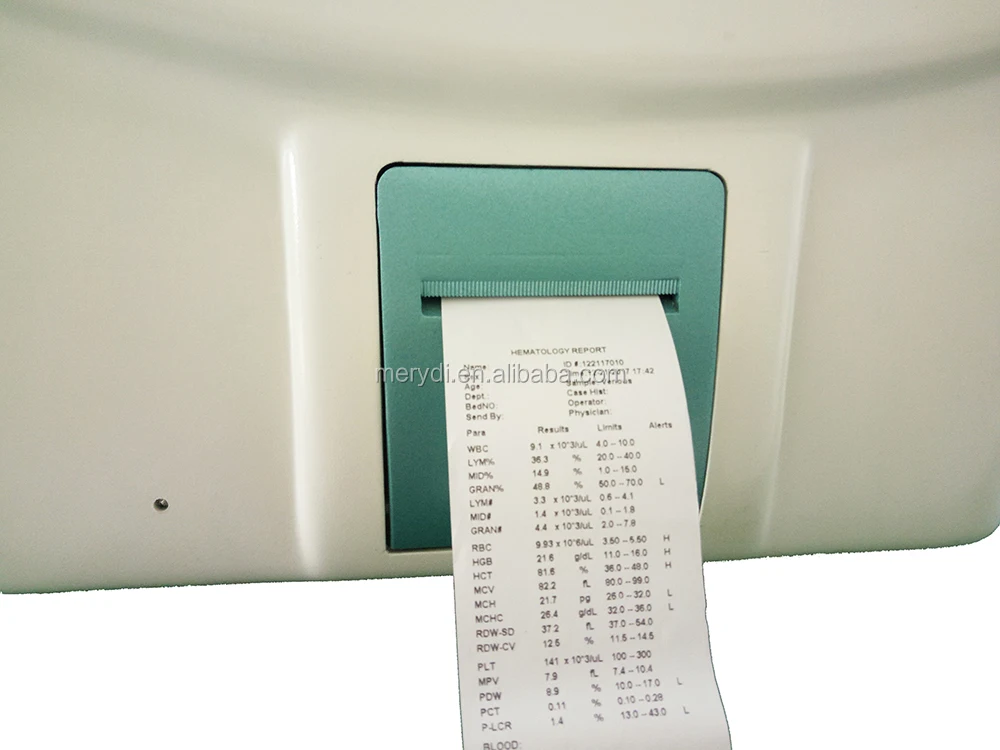

- Internal thermal-sensitive printer or external printer.

- RS232 interface, PC connecting


Precision

Parameters                 linear range            CV %

WBC( 10 9 / L )            0.0 - 99.9               ≤2%

RBC ( 1012 / L )          0.0 - 9.99                ≤1.5%

MCV ( fL )                    40-150                    ≤0.5%

PLT ( 10 9 / L )             0-999                      ≤4.0%

HGB( g/L )                 0.0-300.0                   ≤1.5%



Parameters

WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB,HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV,PDW,PCT,L-PCR

histograms : WBC,RBC and PLT


* Methodology: Electrical resistance for counting, hemoglobin cyanide method and SFT method for hemoglobin

* Parameter: 3part differentiation of WBC; 20 parameters and 3 color histograms (WBC, RBC, PLT)

* Work mode : double Channel + unique Hemoglobin test system

* Sample volume: 10μL for Venous and capillary mode, 10μL for pre-diluted mode

* Throughput: More than 60 samples per hour, operate 24 hours per day, auto sleeping and waking-up functions

* Storage: up to 100000 sample results including histograms can be stored, convenient for inquiry and management of history data

* Operation langue: English

* QC control : X-B, L-J, X , SD, CV %

* Reference Value Setting : Male , Female, Children, Neonate

* Input / output : RS232, parallel printer and keyboard

* Print : Graphic thermal printer with various printing format,  optional external printer

* Temperature : 18℃ - 30℃,wet ≤ 10-90%

* Power supply : 220 V ±22 VAC, 50±1Hz

* Dimension : 400mm ( L ) * 400mm ( W ) * 460mm ( H )

* Weight :  21 KG

















Packaging & Shipping

 Packaging & Shipping

Standard Packing:
Dimension:400*400*460mm

Net weight:21kg


Shipping:
1) Methods: By sea or by air, as customer required.
2) Delivery time: Depend on ordering quantity, normally is 15 days after receive deposit.
